When woodworkers set up a plunge or fixed-base router for template work, subbase alignment is critical to maintaining uniform margins. Choosing between an original equipment manufacturer tool and aftermarket compatible sets comes down to brand origin, material construction, and whether a single fixture or a multi-pack aligns best with your workshop workflow. If your router subbase or template guide bushing is misaligned relative to the collet axis, inlay recesses cut unevenly, dovetail pins fit poorly, and router bits risk gouging brass guide bushings. A dedicated centering pin and cone fixture corrects this geometric offset by aligning the subbase bore directly to the rotating center of the motor spindle before you lock down the mounting screws. Exploring a dedicated bosch router power tool setup reveals that concentricity between the cutter and the template guide ring determines final cut precision.
The range of centering accessories available for Bosch routers is organized between the official manufacturer component and direct replacement kits engineered to match its dimensional footprint. At the center of the original system is the dedicated original accessory designed for the Precision Centering Design platform used across specific motor bases. Alongside the original equipment, third-party manufacturers have built compatible centering sets that mirror the stepped pin dimensions and conical geometry to service the same router families. These alternatives introduce different fabrication choices, such as galvanized steel shafts and solid lathed synthetic cones, offered as individual replacement units or multi-pack workshop bundles for woodworkers running multiple dedicated routing stations.
Bosch Router Centering Pins and Cones Lineup at a Glance
| Model | Collet Fit | Cone Material | Pack Quantity |
|---|---|---|---|
| BOSCH RA1151 Router Subbase Centering Pin | 1/4 in. and 1/2 in. | Blend | 1 Count |
| RA1151 Router Centering Pin and Cone | 1/4 in. and 1/2 in. | Solid body with flat conical surfaces | 1 Count |
| POWERTEC Router Centering Pin and Cone | 1/4 in. and 1/2 in. | Lathed ABS plastic | 1 Count |
| POWERTEC Router Centering Pin and Cone | 1/4 in. and 1/2 in. | Lathed ABS plastic | 2 Count |
The Models in Detail
BOSCH RA1151 Router Subbase Centering Pin For precise centering of template guides and attached subbases
Check price on Amazon 4.7 out of 5 — average from Amazon buyers
Best for: OEM Bosch router owners seeking factory original parts
Pros
- Genuine Bosch factory accessory
- Dual 1/4-inch and 1/2-inch stepped pin
- Broad Bosch router model compatibility
Cons
- Listing does not state cone material details
The BOSCH RA1151 Router Subbase Centering Pin is the factory original centering accessory produced directly by Bosch for its dedicated router series. Manufactured in Mexico, this two-piece assembly consists of a dual-ended center pin and a matching centering cone constructed from a durable composite blend material. The unit weighs 9.07 grams and carries a dedicated center cut profile designed specifically for the Bosch Precision Centering Design. Its stepped steel pin features two distinct arbor sections to accommodate both standard 1/4-inch and 1/2-inch collet chucks without requiring additional sleeves or collet adapters.
Operation follows a straightforward mechanical procedure directly referenced in the product documentation. The user inserts the appropriate diameter pin into the router collet chuck, tightens the collet nut lightly to secure the shaft, and slides the alignment cone over the exposed pin. Once the cone rests within the central opening of the subbase or guide bushing holder, the subbase screws are loosened slightly, allowing the conical taper to center the baseplate concentric to the motor spindle. Once concentricity is achieved, the subbase fasteners are fully tightened to lock the alignment in place. The listing specifies direct compatibility across a broad lineup of Bosch tools, including the 1617 series, 1618 series, 1619EVS, MRF01, MRP01, MRC23EVSK, MRP23EVS, MRF23EVS, RA1161, RA1162, RA1166, PR009, PR010, and PR011.
This model is best suited for woodworkers and finish carpenters who prioritize genuine factory components designed specifically to factory tolerances. Because it is the official part number referenced in router instruction manuals, it eliminates guesswork regarding dimensional fit or warranty compliance. However, for craftsmen who want secondary backup sets or who use third-party subbases with wide non-standard openings, compatible options with lathed solid bodies offer an alternative choice in construction.
RA1151 Router Centering Pin and Cone Router table fit for Bosch router RA1161, RA1162, RA1166, 1617, 1617EVS
Check price on Amazon 4.0 out of 5 — average from Amazon buyers
Best for: Woodworkers wanting a solid cone aftermarket alternative
Pros
- Galvanized steel corrosion-resistant pin
- Solid cone body with flat surface
- Dual collet sizing
Cons
- Third-party aftermarket replacement brand
The RA1151 Router Centering Pin and Cone is an aftermarket replacement set manufactured by OLAWIS, designed to serve the identical centering function as the original factory tool. This product package weighs 2.08 ounces and comes in a compact package measuring 3.11 by 2.72 by 1.18 inches. The alignment pin is constructed from galvanized steel, engineered with dual ends to mount seamlessly into both 1/4-inch and 1/2-inch router chucks. The package listing designates the included components as a two-piece router guide set intended for quick and accurate alignment of subbases and template rails.
A central design feature highlighted in the product specifications is the solid conical body with flat conical surfaces. Rather than employing hollow molded plastic bodies with internal reinforcing ribs, this cone utilizes a solid structure to deliver higher dimensional precision and extended resistance to wear during repeated adjustment cycles. The galvanized steel pin protects against workshop corrosion while resisting deformation when locked inside a collet chuck. Compatible models listed for this centering set include the Bosch 1617, 1617EVS, 1617EVSPK, 1618, 1618EVS, 1619EVS, 1613AEVS, MRF01, MRP01, MRC23EVSK, MRP23EVS, MRF23EVS, PR009, PR010, PR011, RA1161, RA1162, and RA1166 bases, alongside other router subbases utilizing 1/4-inch or 1/2-inch chucks.
This kit suits woodworkers seeking a rugged, corrosion-resistant replacement centering set that prioritizes a solid cone profile over hollow plastic moldings. It serves users who need to recalibrate their subbases after replacing factory acrylic plates or when switching between plunge and fixed bases. While it matches the original Bosch dimensional profile, it is an aftermarket alternative from OLAWIS rather than an original equipment manufacturer part, meaning purists seeking factory-branded accessories will prefer the original Bosch reference.
POWERTEC Router Centering Pin and Cone Our router centering pin has a zinc-plated steel pin made for inside or
Check price on Amazon 4.2 out of 5 — average from Amazon buyers
Best for: Busy workshops maintaining multiple routing stations simultaneously
Pros
- Convenient 2-pack kit
- Lathed solid ABS construction
- Zinc-plated dual-ended steel pins
Cons
- Redundant for woodworkers with single routers
Best for: Craftsmen needing a lathed ABS precision tool
Pros
- Lathed solid ABS plastic cone
- Zinc-plated steel pin
- Clear 1-3/16-inch base hole compatibility
Cons
- Limited to subbase holes under 1-3/4 inches

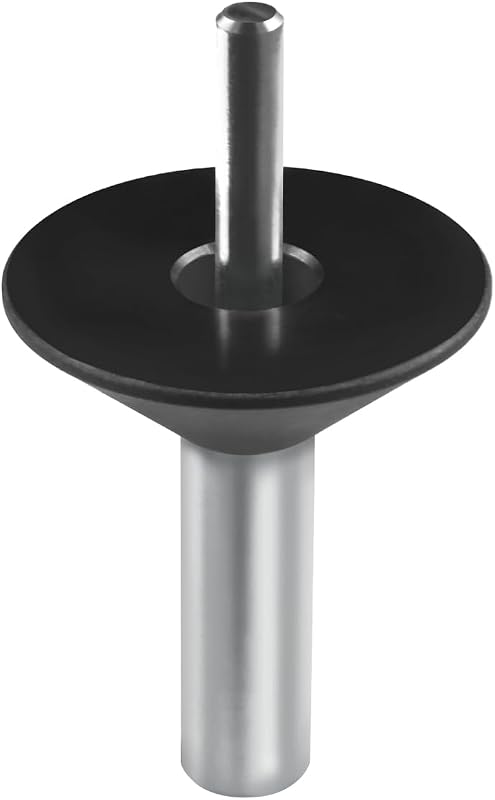

The POWERTEC Router Centering Pin and Cone (Model 71833) is an aftermarket alignment tool designed to calibrate router baseplates and center template guides on compatible machines. The set includes two primary components: a dual-ended centering pin with 1/4-inch and 1/2-inch ends, and a precision-shaped centering cone. The centering pin is forged from durable steel coated with zinc plating to withstand wear and prevent oxidation, designed specifically for inside or outside mounting configurations. Woodworkers outfitting a dedicated bosch router table cabinet often find that keeping subbases concentric before mounting them into inserts prevents bit clearance issues during deep plunging operations.
According to the product specifications, the centering cone is crafted from solid ABS plastic shaped through a lathing process rather than standard injection molding. This lathed ABS solid construction provides a continuous, flattened conical surface that prevents template guides from catching on surface imperfections or mold seams. The listing specifies that this set is designed for Porter Cable and is compatible with Bosch style router subbases featuring a 1-3/16-inch diameter center hole or any center hole opening measuring less than 1-3/4 inches. The tool operates by seating the cone squarely into the subbase opening, ensuring concentricity before fasteners are locked down.
This individual POWERTEC kit is suited for hobbyists and professional cabinetmakers who require a well-documented aftermarket centering tool from an established woodworking accessories brand. The lathed ABS cone delivers smooth tactile feedback when seating against acrylic or phenolic baseplate chamfers. For workshops running multiple routers simultaneously, however, a single pack requires moving the pin between tools, making the corresponding dual-pack bundle a more efficient alternative.
POWERTEC Router Centering Pin and Cone Our router centering pin has a zinc-plated steel pin made for inside or
Check price on Amazon 4.5 out of 5 — average from Amazon buyers

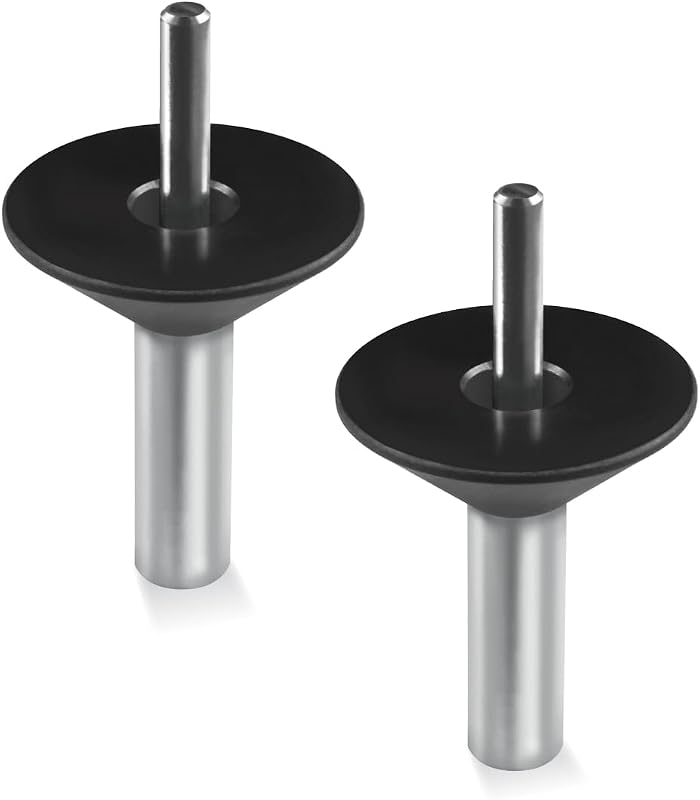

The POWERTEC Router Centering Pin and Cone (Model 71833-P2) provides the exact same mechanical specifications and dimensional standards as the single-pack version but delivers them in a convenient 2-piece set. Containing two complete alignment sets—totaling two zinc-plated steel pins with 1/4-inch and 1/2-inch stepped ends and two lathed solid ABS cones—the complete package weighs 4.8 ounces. This multi-pack addresses the practical workflow demands of busy workshops where multiple routers are maintained in active rotation.
Like the single unit, this two-pack features steel pins treated with zinc coating for corrosion resistance and lathed solid ABS cones engineered with flat taper profiles. The lathed construction eliminates the flexibility and ribbing common in low-cost molded alternatives, maintaining rigid geometry against subbase openings. Each set in the package accommodates subbases with 1-3/16-inch center openings or any subbase aperture smaller than 1-3/4 inches, matching both Bosch style subbases and Porter Cable template guide openings. Having multiple pins available allows woodworkers to keep one centering assembly permanently stationed near the primary bench router while maintaining another inside a secondary routing station or jobsite storage box.
This package is tailored specifically for production shops, multi-router setups, or woodworkers operating dedicated plunge and fixed bases side by side. Just as precision cutting setups benefit from proper alignment across tools like a bosch miter saw 12 inch dual bevel, routing stations demand repeatable concentricity to ensure templates match across different workbenches. If you only own a single trim router and rarely adjust its baseplate, investing in a multi-pack creates redundant hardware, making the single-pack unit a more direct choice.
Matching a Model to Your Setup
- Single Bosch Router Factory Maintenance: Select the BOSCH RA1151 Router Subbase Centering Pin if you prefer genuine original equipment manufacturer parts engineered to match factory specifications across Bosch 1617, 1618, and MRP series routers.
- Solid Taper Body Preference on a Single Machine: Choose the RA1151 Router Centering Pin and Cone if you need a durable aftermarket replacement built with a galvanized steel pin and a solid conical profile with flat surfaces.
- Universal Bench Routing and Porter Cable Style Plates: Pick the single-pack POWERTEC Router Centering Pin and Cone if your subbases feature standard 1-3/16-inch guide bushing cutouts and you prefer lathed solid ABS plastic over hollow molded components.
- Multi-Base Workshop Environments: Select the two-pack POWERTEC Router Centering Pin and Cone if you regularly alternate between fixed and plunge bases or manage multiple routing stations and require dedicated calibration fixtures at each bench.
- Palm and Compact Trim Router Setups: Use the BOSCH RA1151 Router Subbase Centering Pin when calibrating compact plunge bases such as the PR009, PR010, and PR011 bases where exact factory clearance documentation is required.
Before You Buy
While router centering pins and cones are essential setup tools, buyers should note specific limitations regarding what is included in these product listings. None of these centering fixtures include router subbase mounting screws, collet wrenches, or replacement guide bushings. If your subbase screws are stripped or missing, or if you need template guide adapters for non-standard baseplates, those items must be sourced separately. Furthermore, the product listings do not specify maximum runout tolerances or numeric hardness ratings for the steel pins, providing instead general dimensional fit for 1/4-inch and 1/2-inch collet sizes.
Additionally, subbase aperture compatibility requires careful checking before purchase. While the POWERTEC listings clearly state compatibility with 1-3/16-inch center holes and subbase openings under 1-3/4 inches, the listings for the original Bosch RA1151 and the OLAWIS RA1151 focus primarily on tool model numbers rather than specifying maximum diameter thresholds. If you are operating aftermarket router baseplates with large opening diameters exceeding 1-3/4 inches—often used for large raised panel bits—standard centering cones may fall completely through the center hole without engaging the edge of the opening.
FAQ
Why is a centering pin and cone necessary when mounting a router subbase?
Subbase mounting holes on router castings feature slight mechanical clearance to allow manual adjustment. Without a centering pin and cone inserted into the collet, tightening the mounting screws leaves the subbase off-center relative to the motor spindle. When using template guide bushings, an off-center subbase causes the bit to cut closer to one side of the template than the other, resulting in irregular mortises, mismatched inlays, or cutter contact with the bushing wall.
How does the dual-ended pin work with different collets?
The alignment pin features a stepped cylindrical design with two different diameters ground onto the same shaft. One end is dimensioned to 1/4 inch while the opposite end is dimensioned to 1/2 inch. Depending on the collet installed in your router, you insert the matching end into the collet chuck and slide the centering cone over the exposed end to perform the alignment.
What is the difference between lathed ABS cones and molded hollow cones?
Traditional molded plastic cones are often manufactured with hollow interiors and structural ribs, which can introduce surface irregularities, mold lines, or slight flexibility under lateral pressure. Lathed solid ABS cones, as featured on the POWERTEC and solid aftermarket models, are machined from solid stock to produce a smooth, flattened taper that seats consistently against the circular opening of the subbase plate.
Can these centering tools be used on routers from other brands?
The POWERTEC centering pin listings explicitly note design compatibility with Porter Cable and any router subbases featuring a 1-3/16-inch center hole or openings under 1-3/4 inches. The OLAWIS model also states compatibility with other routers utilizing 1/4-inch or 1/2-inch chucks. As long as your router utilizes standard 1/4-inch or 1/2-inch collets and has a centered subbase opening that falls within the taper dimensions of the cone, these fixtures can center compatible baseplates regardless of motor brand.
Are template guide bushings included with these centering kits?
No, the product listings state that these kits include only the centering pin and the corresponding conical alignment body (or two pairs in the case of the multi-pack). Template guide bushings, lock nuts, subbase plates, and mounting fasteners must be purchased separately or utilized from your router’s existing accessory collection.
