When a pool automation board displays an inaccurate water temperature reading or throws an open sensor error code, heating schedules collapse, freeze protection fails to activate correctly, and pool routines grind to a halt. Pool owners troubleshooting their equipment pad must determine whether they need a standard thermistor probe for primary pipe monitoring, a legacy linear sensor tailored to an older commercial panel, or a dedicated solar sensor kit designed to monitor ambient roof collector heat. Selecting the proper sensor requires identifying the operational architecture of your control panel, because installing an incompatible sensor type will send distorted voltage data to the automation board, causing heaters to run erratically or shut down completely. This guide examines three specific sensor options to help you complete an effective pool water temperature sensor replacement without second-guessing compatibility.
The temperature sensor lineup associated with Pentair equipment is divided into three distinct operational categories based on listing specifications: modern 10K Ohm thermistor replacements, legacy linear units, and dedicated solar temperature kits. The most ubiquitous configuration across modern residential systems is the 10K thermistor standard used for water, air, and solar readings on common automation boards. Alongside this standard sits the specialized Compool linear technology, built around analog output principles for commercial and classic automation panels. Finally, dedicated solar assemblies provide specialized monitoring for solar heating arrays. By comparing the 520272 Pool Water Temperature Sensor Replacement against genuine options like the Pentair Sensor Compool linear model and the Pentair Solar Temperature Sensor black 522101, pool operators can easily match their specific automation setup to the correct sensor hardware.
Pentair Pool Temperature Sensors Lineup at a Glance
| Model | Sensor Type | Compatibility | Key Specification |
|---|---|---|---|
| 520272 Pool Water Temperature Sensor Replacement | 10K Ohm thermistor | IntelliTouch, EasyTouch, SunTouch | 20-foot attached cable |
| Pentair Sensor | Linear analog sensor | Compool commercial automation | Model TS5L design |
| Pentair Solar Temperature Sensor black 522101 | Solar kit sensor | Pentair solar, water, and air loops | OEM 522101 kit |
The Models in Detail
520272 Pool Water Temperature Sensor Replacement Designed as a replacement pool temperature sensor for Pentair pool and spa
Check price on Amazon Our score: 8.8/10
Best for: EasyTouch and IntelliTouch automation owners
Pros
- Direct 520272 replacement
- Built-in 10K Ohm thermistor
- Long 20-foot cable
- Easy DIY wiring connection
Cons
- Aftermarket Gekufa brand
- Requires existing clamp reuse
The 520272 Pool Water Temperature Sensor Replacement by Gekufa is an aftermarket replacement engineered to restore accurate thermal monitoring across a wide selection of modern automation boards. Built around a 10K Ohm thermistor, this probe provides stable temperature detection for pool water, ambient air, and solar collector loops. The listing highlights its direct compatibility with Pentair IntelliTouch, EasyTouch, and SunTouch systems, making it a versatile option for automated setups experiencing faulty sensor readouts. Rather than requiring an entire automation motherboard upgrade or expensive service calls, this unit allows pool owners to replace only the failing probe assembly directly at the plumbing manifold or control cabinet.
Installation flexibility is a standout aspect of this unit, courtesy of its integrated 20-foot cable. That generous length gives equipment technicians and homeowners plenty of slack to route wiring neatly through protective conduit from the PVC pipe tap back to the low-voltage raceway inside the control enclosure. When installing the probe into an existing pipe tap, the listing emphasizes the importance of properly securing the sensor clamp and O-ring to prevent high-pressure water leaks while the pump operates. For DIY homeowners accessing outdoor electrical boxes, using an electric screwdriver skil can speed up removing panel enclosure screws during wire hookup.
This 10K Ohm sensor suits homeowners maintaining modern residential automation who need a direct pentair 520272 sensor substitute. It excels as a pentair intellitouch sensor or pentair easytouch sensor replacement when the original thermistor has drifted or shorted out. However, it gives way to specialized hardware if your equipment pad runs an older Compool control architecture that demands a linear analog signal rather than a standard 10K thermistor resistance curve.
Pentair Sensor Sensor, Temp, Pentair, Compool, Linear
Check price on Amazon Our score: 8.2/10
Best for: Legacy Compool automation control systems
Pros
- Authentic Pentair TS5L model
- Linear analog sensor output
- Commercial system compatible
Cons
- Incompatible with EasyTouch panels
- Cable length not specified
The Pentair Sensor, carrying model number TS5L, is an authentic Pentair Pool Products component manufactured specifically for Compool automation systems. Unlike modern thermistors whose resistance changes exponentially with temperature, this component is designed as a linear analog sensor for pool and spa commercial automation control systems. The listing details confirm an analog output format, an item weight of 1.76 ounces, and physical dimensions of 6.3 by 4.8 by 2 inches. Because commercial and classic Compool motherboards translate voltage on a linear scale, installing the TS5L ensures the board registers accurate water temperature without digital calculation errors.
This unit is specifically tailored to facility managers, commercial pool operators, and owners of legacy residential installations running genuine Compool control systems. Because older automation mainboards lack the calibration software to interpret 10K Ohm thermistor inputs, utilizing a dedicated pentair compool temp sensor is essential to avoid wild temperature swings in heated bodies of water. The listing provides specific identifiers, including model TS5L and UPCs 788379692476 and 788734740873, confirming its authentic factory specification.
While the Pentair TS5L provides uncompromising accuracy for its intended automation platform, it is strictly intended for Compool systems. If your pad utilizes modern EasyTouch, SunTouch, or IntelliTouch control panels, this linear probe will not communicate correctly with your system, and you should choose a 10K Ohm thermistor such as the 520272 replacement instead.

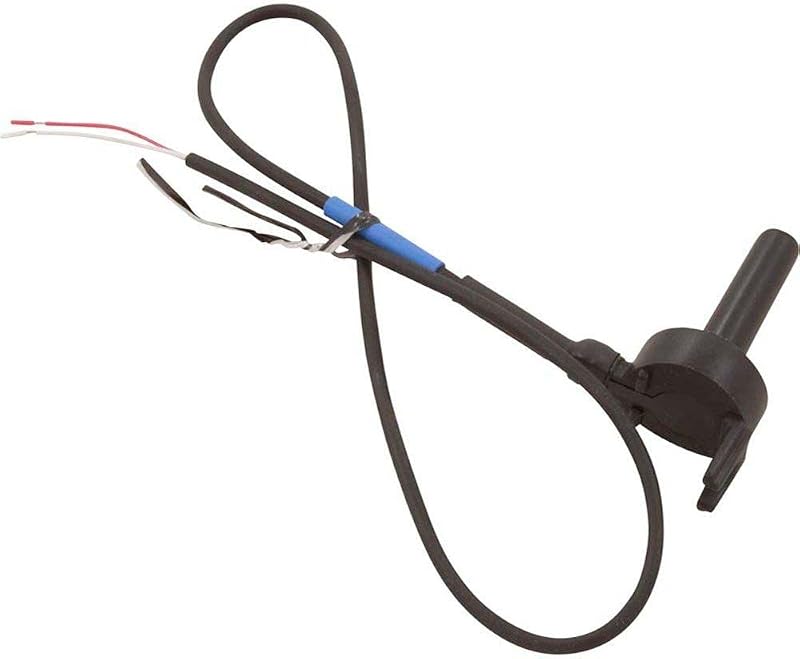

Pentair Solar Temperature Sensor black 522101 Pentair Solar Temperature Sensor black 522101
Check price on Amazon Our score: 9.4/10
Best for: Dedicated solar pool heating systems
Pros
- Genuine Pentair 522101 kit
- Compact lightweight housing
- Water air solar versatility
Cons
- Cable length not specified
- Mounting hardware not detailed
The Pentair Solar Temperature Sensor black 522101 is an authentic OEM component manufactured by Pentair Water Pool and Spa under model number 522101. Described in its listing as a solar temp kit for water, air, and solar applications, this sensor features a compact black housing measuring 1 by 1 by 1 inches and weighing a lightweight 0.634 ounces. Its specialized design allows it to monitor temperatures on rooftop solar heating panels or along solar booster plumbing runs, feeding vital thermal differential readings back to automated solar controllers.
Solar heating systems depend on precise temperature monitoring to determine when solar collector panels are warmer than the pool water itself. The pentair solar temperature sensor 522101 fulfills this role by providing the controller with the data required to actuate motorized diverter valves, circulating water through roof panels only when solar heat gain is achievable. Because this component is listed as an authentic Pentair kit suitable for water, air, and solar roles, it provides equipment managers with factory-level reliability for specialized environmental sensing.
This model is ideal for pool owners who maintain dedicated solar heating systems and want an authentic Pentair factory replacement. While the 520272 aftermarket sensor can technically function in solar applications where a 10K thermistor is specified, the 522101 is the direct OEM kit choice for users who prefer genuine Pentair Water Pool and Spa parts for their solar automation circuits.
Matching a Model to Your Setup
- Modern EasyTouch or IntelliTouch primary water monitoring: Choose the 520272 Pool Water Temperature Sensor Replacement when you need an immediate 10K Ohm thermistor swap to fix erratic water temperature displays or heater ignition locks on contemporary automation boards.
- Legacy Compool commercial or residential panels: Select the Pentair Sensor (model TS5L) if your equipment enclosure houses a classic Compool control system that requires an analog linear sensor output rather than a standard thermistor.
- Dedicated solar collector panels and roof heating loops: Pick the Pentair Solar Temperature Sensor black 522101 to deliver accurate environmental and panel readings to solar differential controllers.
- Installations with extended conduit runs between pipe and panel: Opt for the 520272 Pool Water Temperature Sensor Replacement because its included 20-foot cable allows easy routing through complex equipment pad layouts without requiring wire splicing.
- Complete OEM fidelity for specialized solar arrays: Choose the Pentair Solar Temperature Sensor black 522101 when maintaining factory-standard Pentair Water Pool and Spa components across your entire solar heating configuration.
Before You Buy
Before purchasing a replacement temperature sensor, examine your current equipment setup and verify exactly what hardware comes in each package. The product listings do not specify whether mounting hose clamps, pipe drilling templates, or extra O-rings are included with the Pentair TS5L or the Pentair 522101 kit. In contrast, the listing for the 520272 Pool Water Temperature Sensor Replacement highlights the necessity of properly securing the sensor clamp and O-ring to prevent leaks, but it does not specify whether replacement pipe clamps come in the package or if the installer must reuse existing hardware. If you are securing plumbing lines against potential leaks around equipment pads, maintaining home water protection equipment like a simplisafe water sensor inside nearby utility rooms offers extra peace of mind.
Additionally, electrical specifications and physical accessories vary significantly across these listings. The listing for the Pentair Sensor TS5L does not specify the attached wire length or gauge, which means buyers retrofitting older commercial systems may need to plan for terminal block extensions. Similarly, the listing for the Pentair Solar Temperature Sensor black 522101 does not detail the exact cable length, solar roof bracket hardware, or resistance rating of the internal thermistor. When conducting a pentair sensor comparison to determine which pentair sensor to buy, always confirm whether your control panel expects a 10K Ohm resistance curve or an analog linear voltage signal before mounting hardware into your plumbing.
FAQ
How do I know if my pool water temperature sensor needs replacement?
A failing water temperature sensor typically causes your automation control panel to display wildly inaccurate water temperatures, display flashing error codes like open sensor warnings, or prevent pool heaters from firing. When a sensor thermistor fails internally, resistance values spike or drop to extreme limits, leading the control board to assume water temperatures are below freezing or dangerously high.
Can a 10K Ohm thermistor replace a Compool linear sensor?
No, a 10K Ohm thermistor cannot replace a Compool linear sensor such as the Pentair Sensor TS5L. Compool systems rely on a specific linear analog voltage signal, whereas standard modern sensors utilize a 10K Ohm resistance curve where resistance changes non-linearly with temperature. Installing a thermistor into a Compool board will result in inaccurate readings across the operating range.
What is the difference between water, air, and solar temperature sensors?
In modern 10K Ohm automation architectures, the internal thermistor technology used for water, air, and solar detection is often identical, but their physical housings and mounting methods differ. Water temperature sensors are inserted directly into drilled PVC pipe holes using an O-ring and pipe clamp to prevent water leaks. Air sensors mount outside the control enclosure in shaded ambient air, while solar sensors like the Pentair Solar Temperature Sensor black 522101 mount near solar collectors to monitor solar heating gain.
Which Pentair sensor to buy for an EasyTouch or IntelliTouch system?
For an EasyTouch, IntelliTouch, or SunTouch control panel, the appropriate selection is a 10K Ohm thermistor model such as the 520272 Pool Water Temperature Sensor Replacement. These modern Pentair automation platforms are specifically programmed to read resistance curves from 10K Ohm sensors, allowing them to regulate pool heating cycles and freeze protection routines accurately.
Does the 520272 Pool Water Temperature Sensor Replacement come with a long cable?
Yes, the listing for the 520272 Pool Water Temperature Sensor Replacement confirms it includes an attached 20-foot cable. This generous length provides ample wire to route through conduit from the plumbing pad, around pool heaters, and directly into the low-voltage wiring compartment of your automation panel without requiring mid-run splices.
